Model dB-AFold-85 - CLAZ - Acoustic Foldable Partition 85 mm

Model dB-AFold-85 - CLAZ

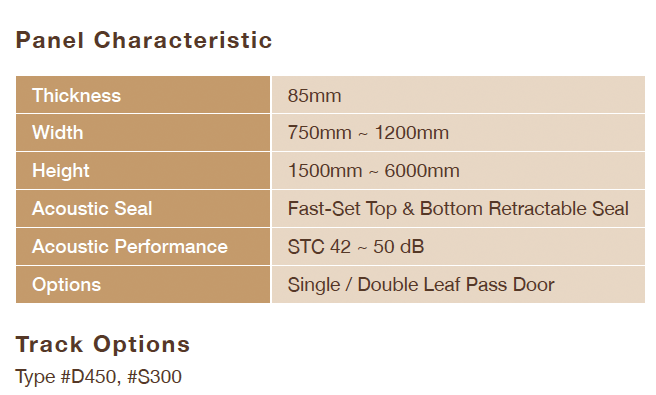

Panel Construction

  • Panels nominal thickness are 85mm thick.
  • Face oards with options of 12mm thick particle board/Gypsum board/MDF board with sound insulation material infill and option of different surface substance to meet different STC requirement.
  • Panel all sided protective frames are made of standard clear natural anodized 6063-T5 architectural grade aluminium alloy.

Acoustic Seals

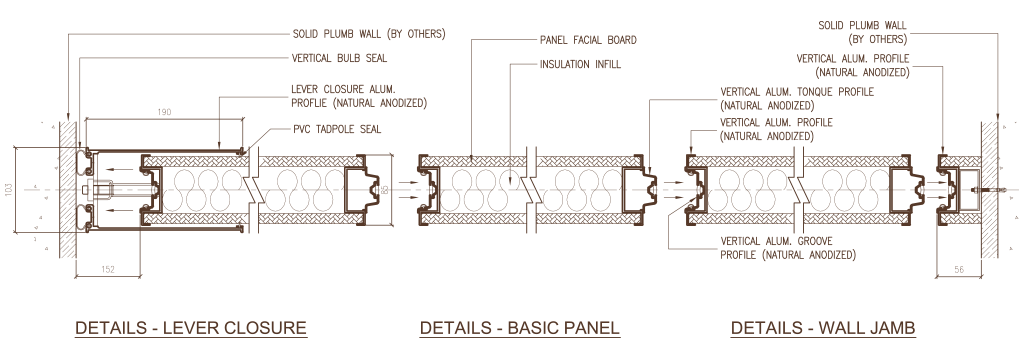

  • Unique Vertical tongue and groove profile ensure panel-to-panel alignment and prevent sound leaks between panel joints.
  • Fast-Set Horizontal top & bottom retractable seals with 38mm nominal operating clearance between top track and bottom floor. The retractable seal provide ideal compression force to top track and bottom floor when the panel is locked in position to prevent sound travelling thought the joints.

Track & Carrier Suspension System

  • The Aluminium Track systems are made of clear natural anodized 6063-T6 architectural grade aluminium alloy.
  • Different options of track intersections available to suit specific design requirement.
  • Options of single or dual carrier’s suspension to suit different stacking layout design and requirement.
  • Each single suspension carrier has four vertical metal bearing wheels roll on the track. Each wheel has precision-ground 6002-2RS bearings, encased with POM, steel banded and reinforced. The double suspension carrier has two horizontal high grade polymer disks manoeuvre on straight or multi direction divert track layout.

Panel Finishes

  • Panel come in standard unfinished for on field decoration or options of factory applied finishes i.e. upholstery fabric,high pressure laminate (HPL), wall paper, PVC laminate, glass, white board and cork board etc.
